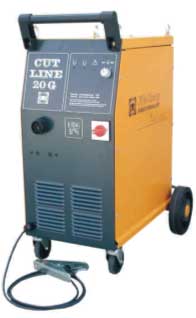

Plasma Cutting Machine - Cutline 20G
For cutting of all electrically conductive materials up to 20 mm material thickness
• with air cooled plasma torch PHT-30 G/L (length 6 m) and
• with plasma gas air.
Excellently suitable in crafts, in small and medium-size companies and training centres, for repairs and on construction sites.
Suitable for straight, profile, template and bevel cutting in all positions, for piercing, for hole and slot cutting.
| High cutting performance: |
- Safe pilot-arc ignition by high-voltage impulses.
- Running cutting start and running piercing possible, no reference point necessary!
- Automatic power increase of the pilot arc at workpiece contact.
- Soft start circuit at cutting start and piercing increases the life time of nozzles and cathodes.
- Excellent cutting quality.
- Small kerfes, low material loss, low pollution development.
|
| High labour safety: |
-
High labour safety by shock-proof with safety shut-down at cutting with hand torch.
-
Control of the plasma gas and the thermal load of the plasma cutting system.
|
|
  |
| Characteristics of CUTLINE 20G : |
- 2 cutting current steps: 30 and 60 A
- Plasma hand torch with central connector (length 6 m)
- Oil and water separator as well as justification of plasma gas pressure by reducer/cleaner on rear wall
- Transportation also by crane (4 crane hooks) or fork lift possible.
|
| Optional accessories: |
-
Circle attachement
-
Wheel guide (ensure constant distance between torch and work, also for save cutting of contours)
-
Distance cap for template cutting
-
Distance cap for nozzle saving cuts
|
Technical data:
Mains voltage |
(V) |
3 x 230 / 400 50 Hz (1) |
(1) on request 500 V
|
Fuse, slow |
(A) |
35 / 25 |
|
Connecting power |
(kVA) |
16 |
|
Protection class |
|
IP 22 |
|
Insulation class |
|
F |
|
Open circuit voltage |
(V) |
275 |
|
Cutting current |
(A) |
30 / 60 |
|
Duty cycle (d.c.) |
(%) |
50 |
|
Thickness - quality cut
- max. cut |
(mm) |
15 (material depending)
20 (material depending) |
|
Plasma gas and cooling |
|
Air, 0.5 MPa |
|
| Air consumption |
l/min |
117 |
|
Ignition |
|
High voltage |
|
Weight |
(kg) |
74 |
|
Dimensions L x W x H |
(mm) |
670 x 490 x 880 |
|
• EN 60974-1, VDE 0544, EN 50078, EN 50192, EN 50199, VBG 15 (UVV 26.0).
• CE sign, manufactured according to DIN EN ISO 9001.
• S sign, applicable to welding jobs at work places with increased electrical endangerment. |
